ETA-2000 (Automatic)
ETA-2000 (Automatic)

ETA-2000 (Automatic)

$0.00

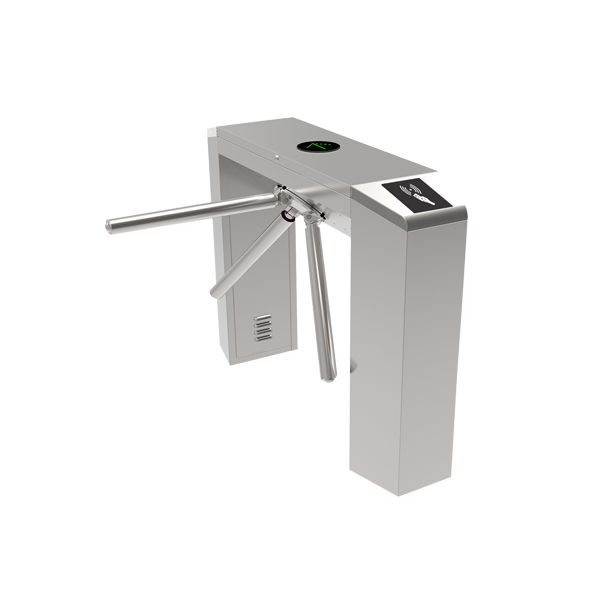

Heavy Duty Automatic Tripod Turnstile

Features:
Passage width : 520mm ,
Throughput rate : 35 p/m,
Max tolerance of Arms : 80 Kg ,
Dimension Excluding Bar : 1200x280x980 mm.

(Available)
Quantity

SKU: MF-2443-6ZCIT

Categories: ETA-2000 (Automatic)

Share:

Technical Specifications

  • Passage width : 520mm
  • Throughput rate : 35 p/m
  • Power supply : 100 ~ 240V
  • Operational voltage : 24V
  • Max tolerance of Arms : 80 Kg
  • Angle per rotation : 120°
  • Operation Type : Oneway - Bidirectional
  • Input control signal : Dry contact
  • Max Power Consumption : 30 W
  • Frequency : 50 ~ 60hz
  • Protection level : IP44
  • Working temperature : -25°C ~ +70°C
  • Electro - magnetic drive : DC
  • Dimension Excluding Bar : 1200x280x980 mm
  • Net weight including bar : 52kg
  • Opening Duration : 5s - 60s
